RUSTGO model 195 model 139
Mobile Work Platforms

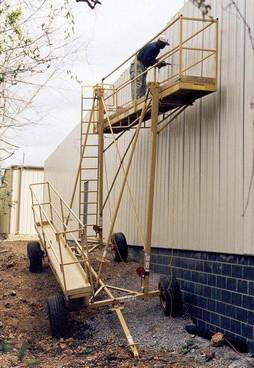

The RUSTGO® mobile work platform is the answer to your scaffolding needs. This work platform is simple, safe and very productive. This mobile scaffolding has terrain adaptable capability along with pressure treated non-skid deck surfaces, including toe boards. These mobile platforms will increase the efficiency, productivity, and safety of your workers. This equipment is sometimes referred to as a ‘scaffold wagon’. Flexible financing and lease purchase options are available.

Compare the RUSTGO to any other method of scaffolding up to 32 feet. The multiple platforms allow you full access to the wall, top to bottom. The mobility allows you to do the whole job with one set up. The terrain adaptability keeps the unit level, stable and safe. Your production will increase while your cost goes down.
ENDLESS APPLICATIONS:
FENCE INSTALLATION
PAINTING
SIDING

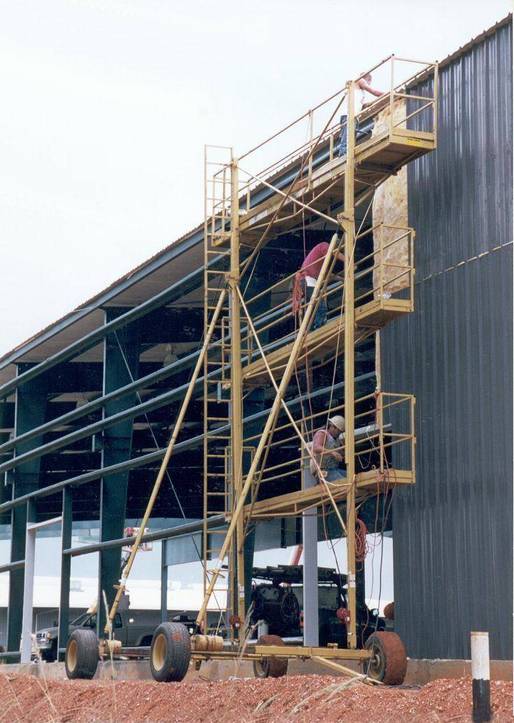

METAL AND WOODEN BUILDING ERECTION
STUCCO/DRYWALL FINISHING
ROOFING
GUTTER INSTALLATION
GLAZING
WINDOW INSTALLATION
DRY-DOCK BOAT MAINTENANCE
SINGLE & MULTI-UNIT HOUSING CONSTRUCTION
MOBILE OBSERVATION TOWER
SIGN AND ADVERTISING INSTALLATION
CONCRETE FORM ERECTION
BUILDING MAINTENANCE AND FALL PROTECTION
The RUSTGO All Terrain Mobile Work Platform is one of the most unique pieces of equipment. Rustgo offers two models supporting up to three platforms. The main platform offers a 20' long by 2' wide working area and working heights of up to 32 feet. Both units can be towed at highway speeds by a standard 1/4 ton pickup truck. Please see the comparison chart below for Model 139 and Model 195.
MODEL 139
IDEAL FOR JOBS THAT REQUIRE A PLATFORM HEIGHT LESS THAN 20 FT
TRANSPORT HEIGHT OF 13'5"- CHASIS MOUNTED - EASY TO TOW AND MANEUVER AROUND JOB SITES AND WITH EXTENSIONS REMOVED, CAN BE TOWED SET-UP IN MOST AREAS
MOVE AROUND THE JOB WITHOUT TEARDOWN SAVES LABOR TIME
MODEL 195
DECK HEIGHT UP TO 25'6"
CAN BE TOWED AT HIGHWAY SPEEDS WHEN DISMANTLED AND "PANCAKED". THE COUNTERWEIGHTS ARE TRANSPORTED SEPARATELY.
| SPECIFICATIONS |
MODEL 139 |
MODEL 195 |
| MAXIMUM OVERALL HEIGHT: |
23'2"/7.1m (+or-2") |
29'3"/8.9m (+or-2") |
| MAXIMUM DECK HEIGHT: |
19'6"/6m |
25'6"/7.8m |
| MAX. DECK HEIGHT W/OUT EXTENSIONS |
13'6"/4.1m |
19'6"/6m |
| HEIGHT ADJUSTMENT INTERVAL |
4"/10cm |
4"/10cm |
| GUARD RAIL HEIGHT |
42"/1.07m |
42"/1.07m |
| OVERALL LENGTH |
23'"7m |
23"/7m |
| WHEELBASE LENGTH |
13'/4m C TO C |
13'/4m C TO C |
| WIDTH |
6'10"/2.1m |
6'10"/2.1m |
| AXLE EXTENDED WIDTH |
N/A |
9'4"/2.9 M |
| *FOR EITHER UNIT ADD 10"/.3M OVERALL WIDTH IF EQUIPPED WITH WIDE TIRES |
|
|
| OVERALL NET WEIGHT |
1,860 LBS/844K |
2,090 LBS/948K |
| COMBINED TOTAL WORKLOAD RATING |
750 LB/340K |
1,000 LB/454K |
| STD. 2'X20' PLATFORM WORKLOAD RATING |
750 LB/340K |
|
| OPTIONAL INTERMEDIATE LEVEL PLATFORM: |
|
|
| 18'X18' I/LEVEL WORKLOAD RATING |
500 LBS/227K |
|
| NET WEIGHT |
330 LBS/150K |
|
Easy to assemble, Rugged construction, O.S.H.A. and C.S.A. * compliant for mobile work platforms and roof edge fall protection! From metal building erection to dry dock usage, the Rustgo offers great flexibility, a safe platform, and increased productivity.
* Rustgo provides four drop pads, a 3' ladder extension, and additional counter weights to meet CSA requirements. For detailed documentation please contact your Rustgo Dealer.
Compare the RUSTGO to any other method of scaffolding up to 32 feet. The multiple platforms allow you full access to the wall, top to bottom. The mobility allows you to do the whole job with one set up. The terrain adaptability keeps the unit level, stable and safe. Your production will increase while your cost goes down.
|
|
|
|
