1. Contractor's Choice for Quality Scaffolding Since 1992





      SCAFFOLDING FRAMES
      'WR SERIES' | 'SW' SERIES | JR. FRAMES | B-SERIES PEDESTAL FRAMES | 'A' FRAMES

      Our high quality scaffolding and accessories are all made from high-strength tubing specifically designed for scaffolding. All frames are cope welded, which increases the strength and rigidity and in turn provides you with safer working conditions.

      Scaffolding Frames

      Walk thru frames, Single Ladder Frames, Narrow Frames and Folding A-Frames.
      • Scaffolding: All Types and Styles of Frames are available.
      • Accessories: Screw-jacks, base Plates, Guard Rail Posts and Rails, Cross Braces, Casters, Replacement Parts.
      • Plank: OSHA-Approved Scaffold Plank (Laminated and Yellow Pine). Aluminum Hook Plank, Telescoping Aluminum Plank.
      "WR" Series
      This system is manufactured with 1 5/8" tube and comes standard with Fast Lock.

      STOCK# DESCRIPTION WEIGHT
      WR-531S 5' X 3’ 1" Single Ladder Frame 30 LBS
      WR-541S 5' X 4’ 1" Single Ladder Frame 33 LBS
      WR-551S 5' X 5’ 1" Single Ladder Frame 37 LBS
      WR-567S 5' X 6’ 7" Single Ladder Frame 48 LBS
      WR7-567W 5' X 6' 7" Walk Thru Frame 48 LBS
      WR-2931L 29' X 3’ 1" Narrow Frame 22 LBS
      WR-2951L 29' X 5’ 1" Narrow Frame 28 LBS
       WR-2961L  29' X 6’ 7" Narrow Frame  30 LBS


      BACK TO TOP OF PAGE
      WR SERIES; WR-551S, WR-51L, WR7-56W

      "SW" Series
      This system is manufactured 1 7/16" tube and comes with Drop Lock.

      STOCK# DESCRIPTION WEIGHT
      SW-531S 5' X 3’ 1" Single Ladder Frame 29 LBS
      SW-541S 5' X 4’ 1" Single Ladder Frame 35 LBS
      SW-551S 5' X 5’ 1" Single Ladder Frame 39 LBS
      SW-564S 5' X 6’ 4" Single Ladder Frame 45 LBS
      SW-564W 5' X 6' 4 " Walk Thru Frame 49 LBS
      SW-4264W 42" X 6' 4" Walk Thru Frame 39 LBS

       BACK TO TOP OF PAGE

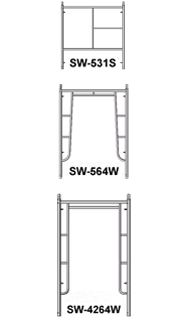

      SW Frames
      JR. Frames
      This system is manufactured 1 1/4" tube and comes standard with Drop Lock.

      STOCK # DESCRIPTION WEIGHT
      SWJ-44S 4' X 4' Single Ladder Frame 20 LBS
      SWJ-464S 4' X 6' 4" Single Ladder Frame 39 LBS


      BACK TO TOP OF PAGE

      JR Frames
      B-Series Pedestal Frames


      STOCK # DESCRIPTION WEIGHT
      B-PF Pedestal Frame w/Legs
      B-PL Pedestal Frame w/Legs


      BACK TO TOP OF PAGE

      B-Series Pedistal Frames

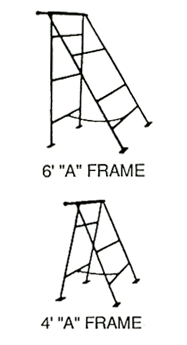

      "A" Frames

      STOCK# DESCRIPTION WEIGHT
      FT-3 3' Folding "A" Frame 19 LBS
      FT-4 4' Folding "A" Frame 24 LBS
      FT-6 6' Folding "A" Frame 43 LBS
      FT-E2 2' Folding "A" Frame Extension 8 LBS
      FT-E3 3' Folding "A" Frame Extension 13 LBS


      BACK TO TOP OF PAGE
      Frames

      All Purpose Scaffold

      STOCK# DESCRIPTION WEIGHT
      AP Includes 2 - 65" ladders, 2-6' Trusses, 1-6' Plywood Platform, and 4 Casters. 185 LBS
      AP-GRS Guard Rail Set 94 LBS
      AP-L39 39" Ladder 18 LBS
      AP-L65 65" Ladder 30 LBS
      AP-P6 6' Platform 38 LBS
      AP-T6 6' Truss 30 LBS
      AP-ORW Outrigger - Wide 30 LBS
      AP-ORN Outrigger  - Narrow 12 LBS
      AP-C5 5" Caster 5 LBS




      Ready Roll
      STOCK# DESCRIPTION WEIGHT
      RR4 4' Ready Roll 56 LBS

      BACK TO TOP OF PAGE
      AP Unit








      A-1 Plank & Scaffold-Aluma-Pole-Bosch-Carolina Ladders-ColemanCable-DeltaJobox-DewaltDiamondProducts-Greenbull-Hitachi-Kraft-MBW-Milwaukee-Quincy-Rack-it-Relton-Rustgo-Stabil-Stihl-Stone-Stow-SafetyHoist-VirginiaAbrasives-Weatherguard-Werner-Wing-Yamaha
        ABRASIVE BLADES    ADJ ROOF BRACKET    AERIAL LIFTS    AIR COMPRESSORS    ALUM-A-POLE    ALUMINUM LADDERSBETA MAX HOISTS COMPACTION EQUIP     CONCRETE SAW BLADES     CONCRETE MIXERS    CONSTR EQUIPMENT    CUT-OFF SAWS    FIBERGLASS LADDERS    GENERATORS    GREEN BULL LADDERS    HOISTS     HOIST ACCESSORIES    HOIST MOUNT    LADDER RACK    LADDERS    LITTLE GIANT LADDER    MIXERS    MORTAR MIXERS    PAINT SPRAYERS    PRESSURE WASHERS    PUMP JACK SYSTEMS     ROOF BRACKETS RUSTGO WORK PLATFO     SAFETY EQUIPMENT    SCAFFOLDING    SCAFFOLDING ACCESS    SHORING ACCESSORIES    SHORING FRAMES   TROWELS   VAN RACK   VIBRATORY PLATES    WHEELBARROWS    WALL & LADDER JACKS    USED EQUIPMENT

      About our Scaffolding

      All of our scaffold and scaffolding related products are High Quality Brand New Products. They are all designed to meet or exceed all OSHA, ANSI, and SIA Standards.

      Sunbelt Scaffolding & Supply sells high quality Scaffolding and related products. We carry many types and sizes of frames including S-Style  (1-11/16"o.d.) and W-Style (1 5/8" o. d.), as well as  Veneer Jacks and Shoring Frames We also carry five, six, eight and ten foot  Cross Braces, several different style and sizes of scaffolding boards and scaffold planks including, eight, ten , twelve and sixteen foot, Di-65 OSHA  compliant,  Southern Yellow Pine Scaffolding Planks as well as seven and ten foot Aluminum-Plywood Scaffold Planks and seven and ten foot All Aluminum Scaffold Planks.   We also carry eight, ten, twelve and 16 foot Laminated planks.  We carry all kinds of Jacks including, Scaffold Screw Jacks with base plates, Scaffold Jacks with Sockets, Scaffold Base Plates, Scaffold Swivel Base Plates, Scaffold Swivel Jacks and High Load Scaffold Jacks. We also carry Scaffolding Wheels Casters  including 5"  Casters with a 1 1/4" square shank (for the Aluminum Bakers Style Scaffold and Steel Bakers Scaffold and  8" Scaffold Casters with a 1 3/8" round shank for the standard Masons Style Scaffolding.  We carry Scaffolding Accessories such as Snap Pins, Hinge Pins,  Spring Retainers,   Gravity Pins,  Rivets and Cotters,  Roll Pins, Snap Pins, 1.625  Connecting Pins, 1.690 Connecting Pins, Right Angle Clamps, Swivel Clamps, Hoist Assemblies and  Wheel Wells.  If you need extra working space, our  Scaffolding Side Brackets and  Scaffolding End Brackets,  allow to to work outside the normal standing area, enabling you to reach areas that may not normally be accessible due to an  obstruction at the base of the scaffolding.  For your safety,  We offer many items, such as  Swing Gates,  Expandable Gates Guard Rails Posts,  five, seven, eight and 10 foot Scaffolding Guard Rails.  For accessibility, We carry 3 foot, 5 foot , and 6 foot Scaffolding Ladders, Ladder Brackets, and Internal Scaffolding Stair Units.
